Specializing in the production of STARMATEC refrigeration equipment, providing efficient refrigeration solutions.

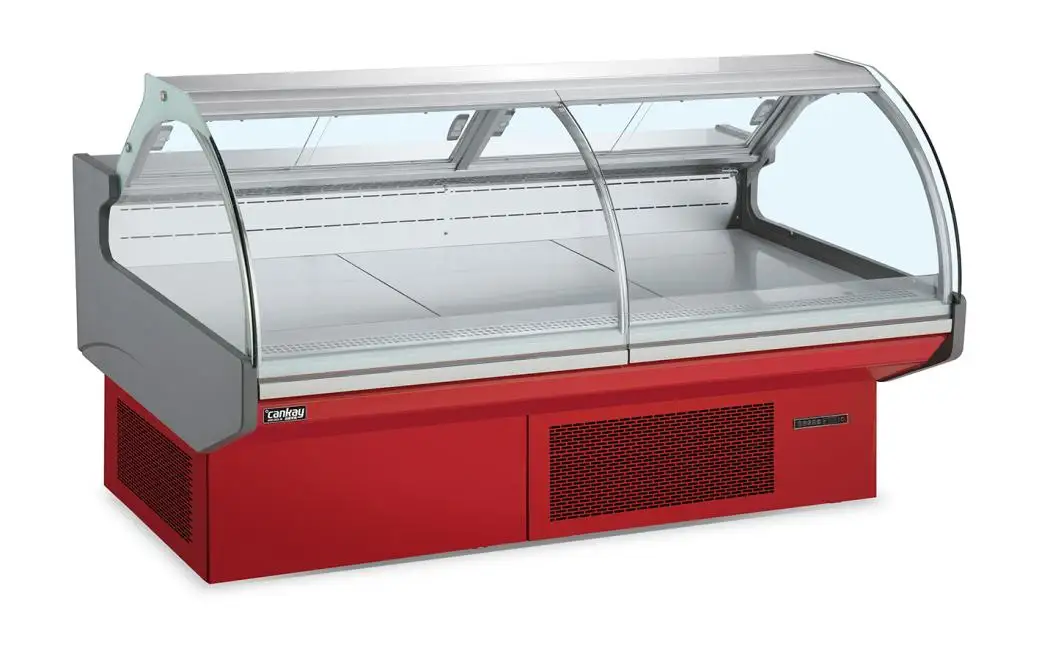

Commercail Supermarket Glass Door Frest Meat Showcase Chiiller Plug-In Refrigeration Unit For Deli Shops
Product Specifications
Completely open space, it is convenient for use.
Shelf height and angle can be adjusted according to different items, it is convenient use.
A pull out night curtain enables power saving when operating at night.
Electronic automatic temperature controller, then the temperature in the cabinet is more accurate.
The product provides compressor power delay function for the curcuit, ensure the normal operation.
| Model A | Per sectin size(mm) | Temp(°C) | Power(W) | Cooling Type | Voltage(V/HZ) | Shelf | Refrigerant | ||
| Exterior Dimention | |||||||||
| L | W | H | |||||||
| SG-15A/AYM | 1500 | 1080 | 1200 | 2~8/-5~-15 | 530 | Fan Cooling | 220v/ 50Hz | 4 | R404a |
| SG-20A/AK/AYM | 2000 | 680 | |||||||
| SG-25A/AK/AYM | 2500 | 980 | |||||||
| SG-30A/AK/AYM | 3000 | 1435 | |||||||
PRODUCT DETAILS
Completely open space, it is convenient for use.
Shelf height and angle can be adjusted according to different items, it is convenient use.。
A pull out night curtain enables power saving when operating at night.
Electronic automatic temperature controller, then the temperature in the cabinet is more accurate.
The product provides compressor power delay function for the curcuit, ensure the normal operation.
CONFIGURATION
2.Tempered glass door
3.Pure copper tube evaporator
4.LED lamp
5.Electronic temperature controller
6.Brand Compressor
7.S/S pan
SG-15A/AYM
key factors to evaluate their quality:
High quality of commercial supermarket refrigerators (also known as commercial display freezers) is crucial for food preservation, energy efficiency, and operational performance. Below are the key factors to evaluate their quality:
- Temperature Uniformity: Internal temperature variation should be ≤2°C to prevent uneven cooling or frost buildup.
- Environmental Adaptability: Should operate stably even in high-temperature or high-humidity conditions (e.g., near store entrances).
- Eco-Friendly Refrigerants**: Use low-GWP refrigerants (e.g.,R404a, R290, R600a) compliant with regulations (e.g., EU F-Gas standards).
- Insulation Layer: Polyurethane foam thickness ≥50mm, high density to minimize cold loss.
- Sealing Performance: Magnetic door gaskets (test by inserting a bill) and anti-condensation design.
- Defrosting Technology: Frost-free air cooling (for freezers) or manual/auto-defrost (cycle should be specified).
- Smart Controls: Digital temperature panel, remote monitoring (Wi-Fi), and fault alarms.
- Food-Grade Materials: Certified by FDA or EU 10/2011, ensuring non-toxic and odor-free materials.
- Impact Protection: Rounded edges, tempered glass with anti-shatter film (optional).
- Service Network: 24/7 support
key factors for evaluating evaporator quality
Evaporator is the core component of a refrigerator's cooling system, and its quality directly affects cooling efficiency, energy consumption, and equipment lifespan. Below are the key factors for evaluating evaporator quality:
- Copper Tube with Aluminum Fins: Excellent thermal conductivity (copper for high-pressure resistance, aluminum for lightweight), used in mid-to-high-end models.
- Hydrophilic Aluminum Coating: Prevents frost buildup and water retention, improving heat exchange efficiency.
- Anti-Corrosion Treatment: Surface should be anodized or epoxy-coated to delay rust (especially in coastal areas).
- Pipe Layout: U-shaped or serpentine coil design minimizes refrigerant flow resistance and avoids "dead oil zones."
- Welding Process: Seamless brazing or high-frequency welding, leak-free (verifiable via helium or pressure testing).
-Temperature Uniformity: Even evaporator distribution (e.g., multi-vent design) ensures internal temperature variation ≤2°C.
- **Refrigerant Compatibility**: Supports eco-friendly refrigerants (e.g., R290/R404A) without efficiency loss.
- Frost-Free Air Cooling: Uses fans for forced circulation, eliminating manual defrosting (ideal for freezers).
- Electric Defrosting: Heating element power must match evaporator size to prevent incomplete defrosting or overheating damage.
- Drainage Design: Sloped drip tray + drainage channel prevents ice buildup or bacterial growth.
- Ease of Cleaning: Modular or detachable design simplifies dust and bacteria removal. - Lifespan: High-quality evaporators last ≥10 years (with regular descaling maintenance).
- Certifications: Complies with ISO 9001, UL/CE safety standards, or GB/T 23133-2019 (China).
Common Issues & Purchasing Tips
-Matching Requirements:
- Choose stainless steel for high-temperature/humidity environments.
- Opt for frost-free + large heat-exchange-area models in high-turnover scenarios.
High-quality copper tubes (wall thickness ≥0.8mm) or copper-clad steel tubes
304 stainless steel tubes (for corrosive environments)
- Heat Fin Materials:
Hydrophilic aluminum fins (thickness ≥0.15mm)
Blue-coated anti-corrosion aluminum fins (for coastal areas)
Parallel flow design (pressure drop ≤15kPa)
Serpentine coil structure (oil return angle ≥15°)
- Heat Dissipation Density:
Fin spacing 3.5-5.0mm (forced convection type)
Fin spacing 6-8mm (natural convection type)
Air-cooled: Heat exchange capacity ≥350W/m²·K
Water-cooled: Heat exchange capacity ≥5000W/m²·K
- Pressure Resistance:
Design pressure ≥3.5MPa
Burst pressure ≥8.0MPa
Operating environment: -30℃ to 55℃
Storage environment: -40℃ to 70℃
- Corrosion Resistance Rating:
Salt spray test ≥500h (GB/T2423.17)
Damp heat test ≥1000h
Automatic brazing (copper tubes)
Pulse TIG welding (stainless steel)
- Leakage Testing:
Helium mass spectrometry (leak rate ≤1×10⁻⁶Pa·m³/s)
48-hour pressure holding test (3.0MPa)
≤80Pa (low-speed models)
≤150Pa (high-speed models)
-Energy Efficiency Ratio (EER)**:
EER ≥3.5 (at 25℃ ambient temperature)
5-500Hz random vibration (30 minutes per axis)
- Lifespan Testing:
Accelerated aging test ≥5000 start-stop cycles
Removable protective mesh (quick-release structure)
Self-cleaning coating (oil & water repellent)
-Service Access:
Standard 1/4" SAE service port
Visual liquid level inspection window
UL/CE certification (electrical safety)
NSF certification (food-grade materials)
- Domestic Certifications:
Industrial product manufacturing license
Energy-saving product certification
15-20% refrigeration capacity redundancy
Airflow matching (2.5-4.0m/s)
- Special Environments:
Dusty environments: Install dust filters
High-temperature environments: Increase heat exchange area by 20%
Note: Microchannel parallel-flow condensers are recommended as the preferred option due to their 30% higher heat exchange efficiency, 40% space savings, and 20% reduction in refrigerant charge compared to traditional fin-and-tube condensers. They are particularly suitable for energy-saving retrofits in modern commercial supermarkets.
Premium galvanized steel (0.6-1.0mm thickness)
304 stainless steel (food grade, 0.5-0.8mm thickness)
Aluminum-magnesium alloy (lightweight design)
- Insulation Layer:
Polyurethane foam (density ≥40kg/m³)
VIP vacuum insulation panels (ultra-thin design)
Flexural strength ≥150MPa
Impact resistance (1kg steel ball drop from 1m height without deformation)
- Sealing Performance:
Continuous/laser welding (air tightness ≤0.5cm³/min)
Sealing gasket (temperature range -40℃ to 80℃)
Electrostatic powder coating (60-80μm thickness)
Fluorocarbon coating (weather resistance ≥10 years)
-Cleanability:
Anti-fingerprint treatment
Easy-clean coating (contact angle ≥110°)
Polyurethane foam ≤0.022W/(m·K)
VIP panels ≤0.005W/(m·K)
- Temperature Maintenance:
Temperature rise ≤1℃/h during power outage (25℃ ambient)
Grounding resistance ≤0.1Ω
Insulation resistance ≥100MΩ
- Food Safety:
Complies with FDA 21 CFR 175.300
NSF certified
Hidden bolt fastening (anti-loosening design)
Quick-release buckle structure
- Maintenance Requirements:
Quarterly seal inspections
Annual load-bearing tests
Operating temperature -30℃ to 60℃
Storage temperature -40℃ to 70℃
- Humidity Resistance:
* No condensation at 95% RH
Stainless steel ≥15 years
Galvanized steel ≥10 years
- Insulation Layer:
Polyurethane foam ≥8 years
VIP panels ≥12 years
Pre-installed temperature sensor mounts
Condensate detection circuit
- Customization Options:
Colored panels (RAL color system)
Custom logo etching
CE certification
- Domestic Certifications:
GB 4706.1 safety certification
Energy-saving product certification
Note: Back panels with anti-condensation heating function are recommended to effectively address condensation issues in high-humidity environments. While VIP vacuum insulation panels have higher costs, they can reduce refrigerator thickness by 15-20%, significantly increasing display area. Regularly inspect the sealing condition at panel-cabinet joints to prevent cold air leakage.
FAQ
Here’s the English translation of the **FAQ on Commercial Supermarket Refrigeration Products**
- By function: Chilled cabinets (0~10°C), freezer cabinets (below -18°C), dual-temperature cabinets (chilled + frozen), deli display cases, meat display cases, ice cream freezers, etc.
- By design: Upright cabinets, chest freezers, island freezers, air-curtain cabinets, modular cabinets, etc.
- Small convenience stores: 1.5~3 m³ upright or chest freezers.
- Large supermarkets: Combine island freezers (3~6 m³) with multiple air-curtain cabinets.
- Power supply: Stable voltage (220V/380V), dedicated circuit (avoid sharing with high-power devices).
- Leveling**: Adjust feet to prevent door seal gaps or noise.
- Clean condenser coils regularly for efficient heat dissipation.
- Minimize door openings to retain cold air.
